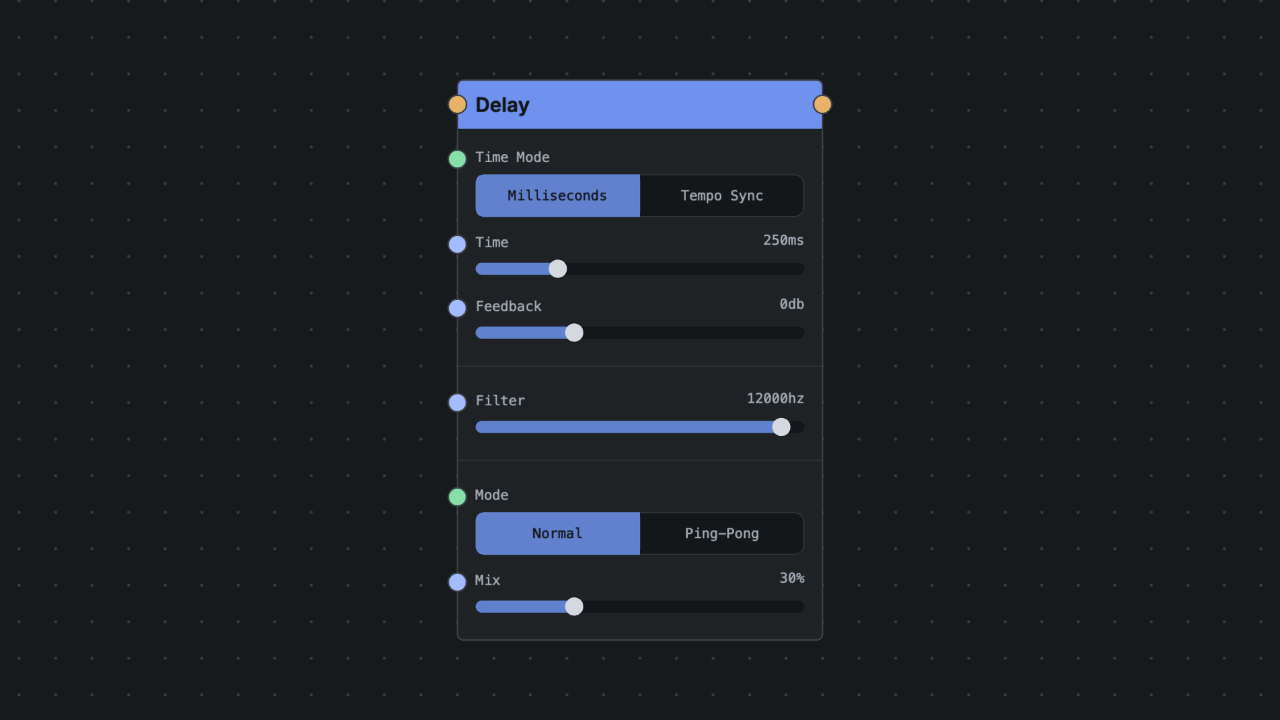

Delay

Stereo delay for echoes, rhythmic repeats, and widening effects, with feedback, optional ping-pong routing, and a Time input that can follow Clock Divider phase outputs.

Inputs

Audio In

• ID: audio
• Kind: audio
• Rate: audio
• Audio Channel Layout: stereo
• Unit: normalized
• Range: -1 to 1 normalized
• Coercion: Implicit
• Description: Mono or stereo audio input.
• Default: 0

Time

• ID: timeMs
• Kind: control
• Rate: control
• Unit: ms
• Range: 0 to 10000 ms
• Coercion: Implicit
• Description: Delay time in milliseconds, or a Clock Divider phase output for synced echoes.
• Default: 250

Feedback

• ID: feedback01
• Kind: control
• Rate: control
• Unit: phase01
• Range: 0 to 0.99 phase01
• Coercion: Implicit
• Description: Feedback amount
• Default: 0.3

Mix

• ID: mix01
• Kind: control
• Rate: control
• Unit: mix01
• Range: 0 to 1 mix01
• Coercion: Implicit
• Description: Wet/dry mix
• Default: 0.3

Outputs

Stereo Output

• ID: out
• Kind: audio
• Rate: audio
• Audio Channel Layout: stereo
• Unit: normalized
• Range: -1 to 1 normalized
• Coercion: Implicit
• Description: Stereo delay output.

Parameters

Time

• ID: delayMs
• Type: float
• Control: slider
• Range or Options: 0 to 8000 ms, step 1
• Default: 250
• Group: Delay

Feedback

• ID: feedback
• Type: float
• Control: slider
• Range or Options: 0 to 0.99 percent, step 0.01
• Default: 0.3
• Group: Delay

Mode

• ID: mode
• Type: enum
• Control: buttons
• Range or Options: Normal (normal), Ping-Pong (pingPong)
• Default: Normal (normal)
• Group: Output

Stereo

• ID: stereo
• Type: float
• Control: slider
• Range or Options: 0 to 1 phase01, step 0.01
• Default: 1
• Group: Output
• Description: Width of the ping-pong delay image

Mix

• ID: mix
• Type: float
• Control: slider
• Range or Options: 0 to 1 mix01, step 0.01
• Default: 0.3
• Group: Output

Notes

• Canonical ID: fx.delay
• Category: effects
• Runtime Surface: control
• Runtime Targets: control-main-thread
• JUCE Early Access: Supported
• Early Access Note: Native-supported in the plugin for the current catalog/runtime support contract.
