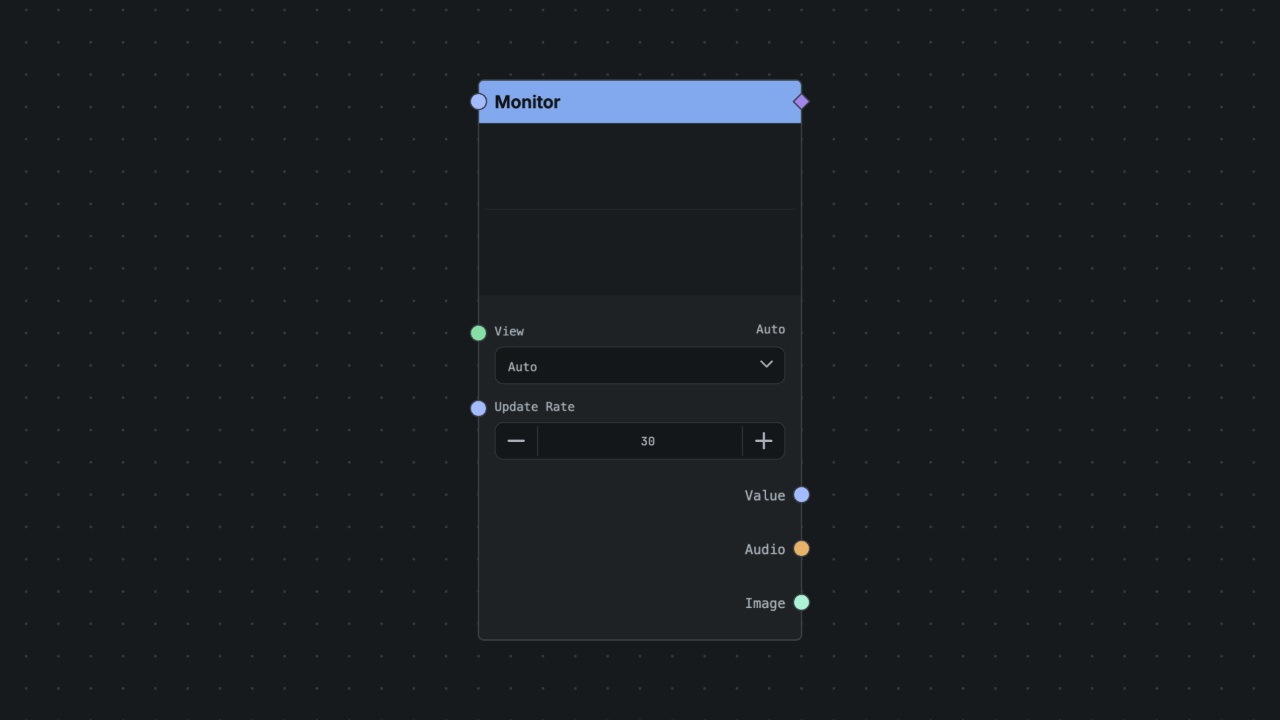

Strangelight AudioMonitor
Shows audio, control, or MIDI on a cable without changing it.
MIDI view shows held notes, chord names, controller values and pitch bend. Update Rate affects the display only; it does not change the signal.
View
Choose a fixed monitor mode or let the display adapt to the connected signal.
The View chooser selects a fixed display or lets the connected signal choose one automatically.
Auto Chooses a view suited to the connected signal type.
Wave Plots recent sample amplitude over time.
Scope Shows a continuously updating oscilloscope trace.
Clock Visualises clock pulses and their timing.
FFT Shows signal energy across frequency bands.
Value Displays the current scalar value numerically.
MIDI Displays incoming MIDI notes and events.
Update Rate
Sets the maximum display refresh rate. It changes the display only, without changing the signal.
The Update Rate control changes the maximum display refresh rate without changing the signal.
Inputs
Input
Signal to inspect. Adopts the connected signal type.
| Signal | Unknown |
|---|
Outputs
Output
The input signal, passed through unchanged.
| Signal | Unknown |
|---|
Notes
- For MIDI, connect the cable to Input and choose MIDI or Auto in View to inspect note and controller activity. Output passes the MIDI events through unchanged.
- NO SIGNAL means no live data has arrived. STALE means earlier data has expired, so the display is not current. NO PREVIEW means live preview is unavailable for that signal type.
| Category | Analysis |
|---|
