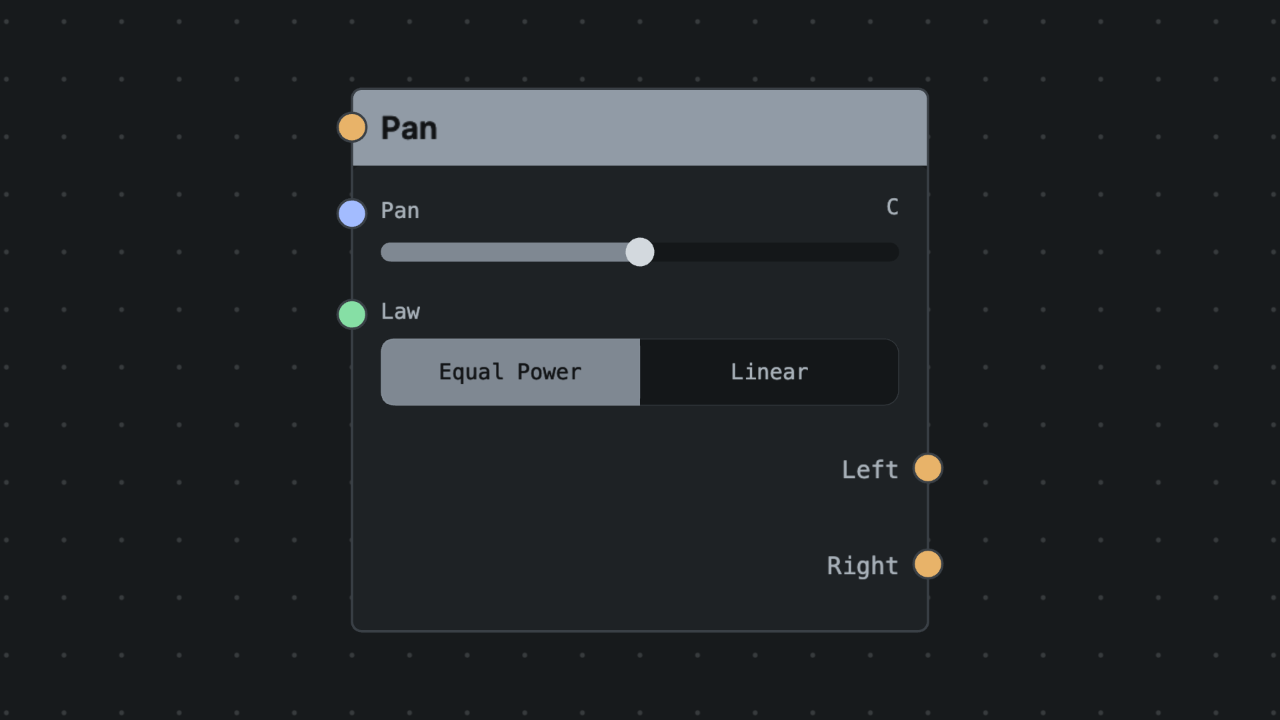

Pan

Stereo panner with equal-power or linear law. The output is stereo and preserves the Audio Channel Layout contract for downstream routing.

Inputs

Audio In

• ID: audio
• Kind: audio
• Rate: audio
• Audio Channel Layout: stereo
• Unit: normalized
• Range: -1 to 1 normalized
• Coercion: Implicit
• Description: Audio signal input
• Default: 0

Pan CV

• ID: panMod
• Kind: control
• Rate: control
• Unit: pan
• Range: -1 to 1 pan
• Coercion: Implicit
• Default: 0

Outputs

Stereo Audio

• ID: audio
• Kind: audio
• Rate: audio
• Audio Channel Layout: stereo
• Unit: normalized
• Range: -1 to 1 normalized
• Coercion: Implicit
• Description: Stereo panned audio output.

Parameters

Pan

• ID: pan
• Type: float
• Control: slider
• Range or Options: -1 to 1 pan, step 0.01
• Default: 0
• Description: −1 = full left, 0 = center, +1 = full right

Law

• ID: law
• Type: enum
• Control: buttons
• Range or Options: Equal Power (equalPower), Linear (linear)
• Default: Equal Power (equalPower)

Notes

• Canonical ID: util.pan
• Category: utilities
• Runtime Surface: control
• Runtime Targets: control-main-thread
• JUCE Early Access: Supported
• Early Access Note: Native-supported in the plugin for the current catalog/runtime support contract.
