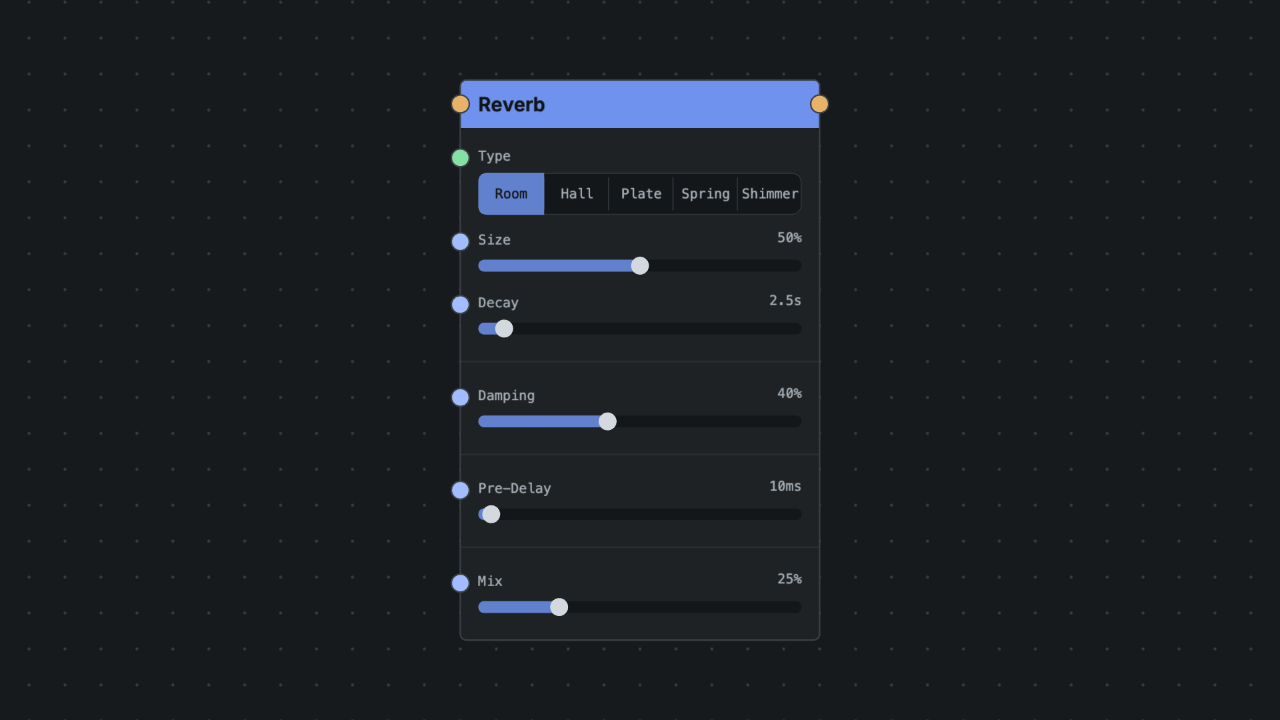

Reverb

Algorithmic reverb for placing sounds in synthetic spaces, with room model, decay, damping, and pre-delay controls.

Inputs

Audio In

• ID: audio
• Kind: audio
• Rate: audio
• Audio Channel Layout: stereo
• Unit: normalized
• Range: -1 to 1 normalized
• Coercion: Implicit
• Description: Mono or stereo audio input.
• Default: 0

Decay

• ID: decaySec
• Kind: control
• Rate: control
• Unit: s
• Range: 0.1 to 30 s
• Coercion: Implicit
• Description: Live decay-time control
• Default: 2.5

Damping

• ID: damping01
• Kind: control
• Rate: control
• Unit: phase01
• Range: 0 to 1 phase01
• Coercion: Implicit
• Description: Live damping control
• Default: 0.4

Mix

• ID: mix01
• Kind: control
• Rate: control
• Unit: mix01
• Range: 0 to 1 mix01
• Coercion: Implicit
• Description: Live wet/dry mix control
• Default: 0.25

Outputs

Stereo Output

• ID: audio
• Kind: audio
• Rate: audio
• Audio Channel Layout: stereo
• Unit: normalized
• Range: -1 to 1 normalized
• Coercion: Implicit
• Description: Stereo reverb output.

Parameters

Type

• ID: reverbType
• Type: enum
• Control: buttons
• Range or Options: Room (room), Hall (hall), Plate (plate), Spring (spring), Shimmer (shimmer), FDN (fdn)
• Default: Room (room)
• Group: Character

Size

• ID: size01
• Type: float
• Control: slider
• Range or Options: 0 to 1 phase01, step 0.01
• Default: 0.5
• Group: Character

Decay

• ID: decaySec
• Type: float
• Control: slider
• Range or Options: 0.1 to 30 s, step 0.01
• Default: 2.5
• Group: Character

Damping

• ID: damping01
• Type: float
• Control: slider
• Range or Options: 0 to 1 phase01, step 0.01
• Default: 0.4
• Group: Tone
• Description: High-frequency damping

Pre-Delay

• ID: preDelayMs
• Type: float
• Control: slider
• Range or Options: 0 to 250 ms, step 1
• Default: 10
• Group: Timing

Mix

• ID: mix
• Type: float
• Control: slider
• Range or Options: 0 to 1 mix01, step 0.01
• Default: 0.25
• Group: Output

Notes

• Canonical ID: fx.reverb
• Category: effects
• Runtime Surface: control
• Runtime Targets: control-main-thread
• JUCE Early Access: Supported
• Early Access Note: Native-supported in the plugin for the current catalog/runtime support contract.
