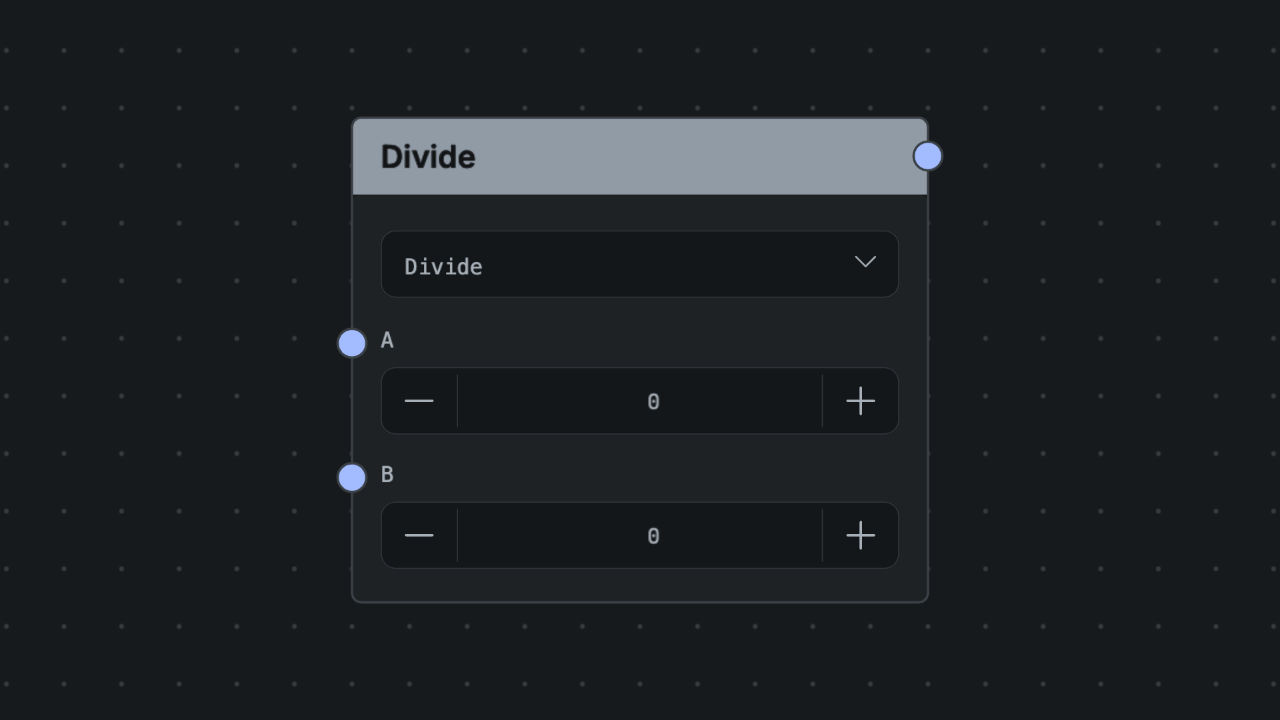

Divide

Divides control signal A by control signal B and outputs the quotient. It is useful for ratio-based modulation, normalizing one signal against another, or scaling by a computed divisor. To stay numerically safe it returns 0 when B is 0 rather than producing an undefined result.

Inputs

A

• ID: a
• Kind: control
• Rate: control
• Coercion: Implicit
• Default: 0

B

• ID: b
• Kind: control
• Rate: control
• Coercion: Implicit
• Default: 0

Outputs

Result

• ID: y
• Kind: control
• Rate: control
• Coercion: Implicit

Notes

• Canonical ID: math.div
• Category: math
• Runtime Surface: control
• Runtime Targets: control-main-thread
• JUCE Early Access: Supported
• Early Access Note: Native-supported in the plugin for the current catalog/runtime support contract.
• Formula: y = a / b
