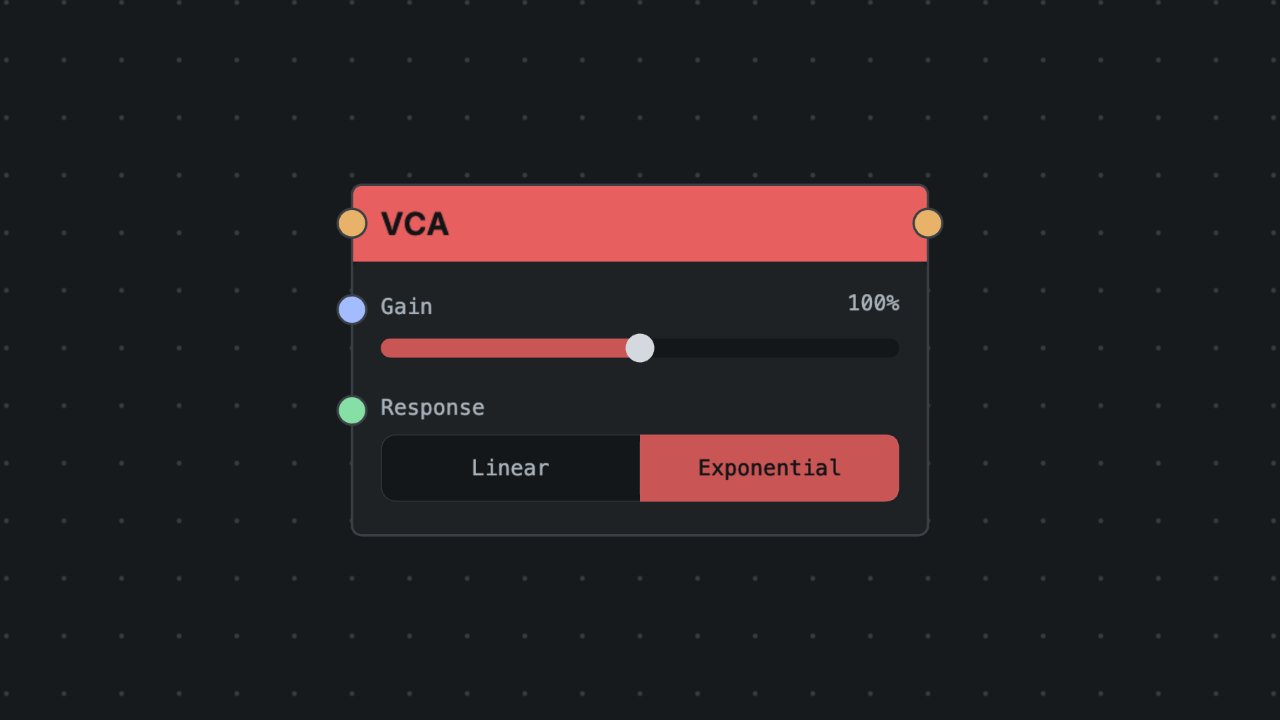

VCA

Audio amplifier controlled by a CV or envelope signal. Commonly used to shape note amplitude or apply tremolo/modulated gain.

Inputs

Signal

• ID: signal
• Kind: audio
• Rate: audio
• Audio Channel Layout: stereo
• Unit: normalized
• Range: -1 to 1 normalized
• Coercion: Implicit
• Description: Audio signal input
• Default: 0

Gain

• ID: gain01
• Kind: control
• Rate: control
• Unit: gain01
• Range: 0 to 1 gain01
• Coercion: Implicit
• Description: Amplitude CV
• Default: 1

Outputs

Signal

• ID: signal
• Kind: audio
• Rate: audio
• Audio Channel Layout: stereo
• Unit: normalized
• Range: -1 to 1 normalized
• Coercion: Implicit
• Description: Audio signal output

Parameters

Gain

• ID: gain
• Type: float
• Control: slider
• Range or Options: 0 to 2 gain01, step 0.01
• Default: 1

Response

• ID: law
• Type: enum
• Control: buttons
• Range or Options: Linear (linear), Exponential (exponential)
• Default: Exponential (exponential)

Notes

• Canonical ID: amp.vca
• Category: utilities
• Runtime Surface: audio
• Runtime Targets: audio-worklet
• JUCE Early Access: Supported
• Early Access Note: Native-supported in the plugin for the current catalog/runtime support contract.
