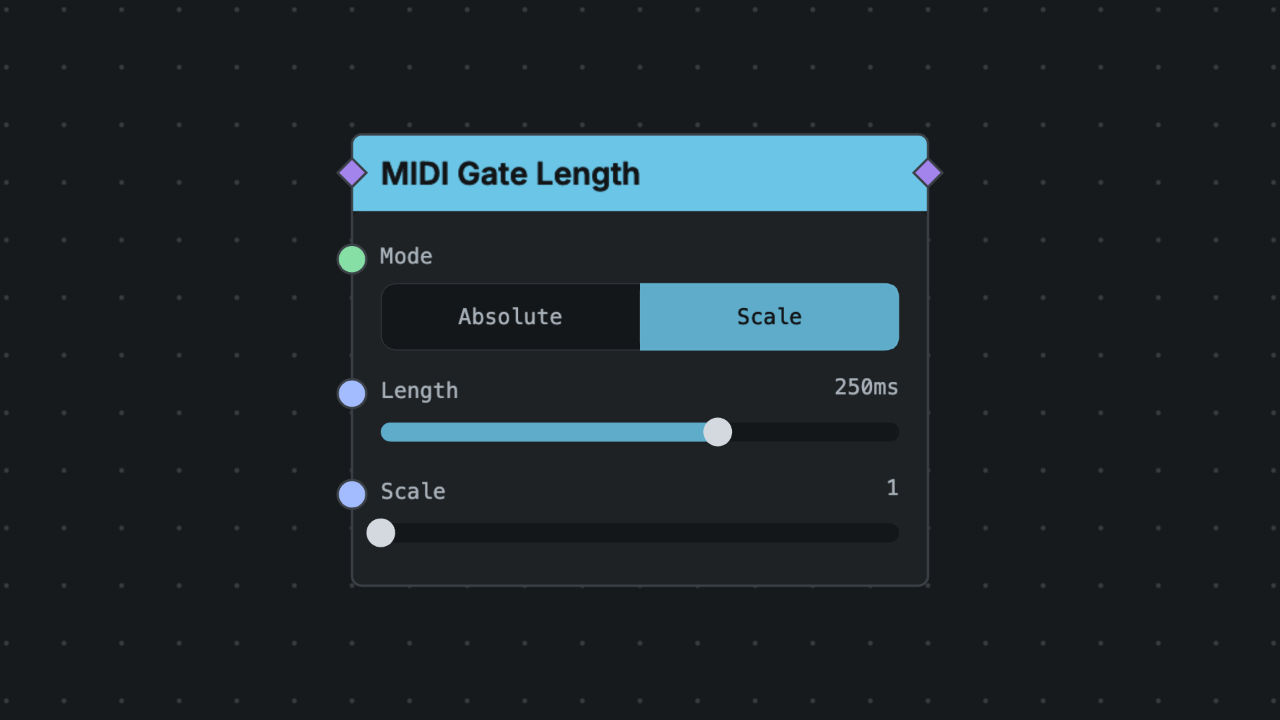

MIDI Gate Length

Reshapes the duration of incoming MIDI notes by controlling when their note-offs occur. Absolute mode enforces a fixed gate length regardless of how long the key is held, giving uniform note durations. Scale mode is causal and extends incoming note-offs proportionally, lengthening notes without ever shortening one that is still being played live.

Inputs

MIDI In

• ID: midi
• Kind: midi
• Rate: event
• Coercion: Forbidden
• Description: MIDI message input

Outputs

MIDI Out

• ID: midi
• Kind: midi
• Rate: event
• Coercion: Forbidden
• Description: MIDI message output

Parameters

Mode

• ID: mode
• Type: enum
• Control: buttons
• Range or Options: Absolute (absolute), Scale (scale)
• Default: Scale (scale)

Length

• ID: lengthMs
• Type: float
• Control: slider
• Range or Options: 1 to 5000 ms, step 1, log
• Default: 250
• Description: Fixed note length used by absolute mode

Length Scale

• ID: scale
• Type: float
• Control: slider
• Range or Options: 1 to 4 ratio, step 0.01
• Default: 1
• Description: Extend-only multiplier for incoming note-offs (minimum 1.0) — live notes are only lengthened, never shortened. To shorten notes, switch Mode to Absolute.

Notes

• Canonical ID: midi.gateLength
• Category: midi
• Runtime Surface: midi
• Runtime Targets: control-main-thread
• JUCE Early Access: Supported
• Early Access Note: Native-supported in the plugin for the current catalog/runtime support contract.
