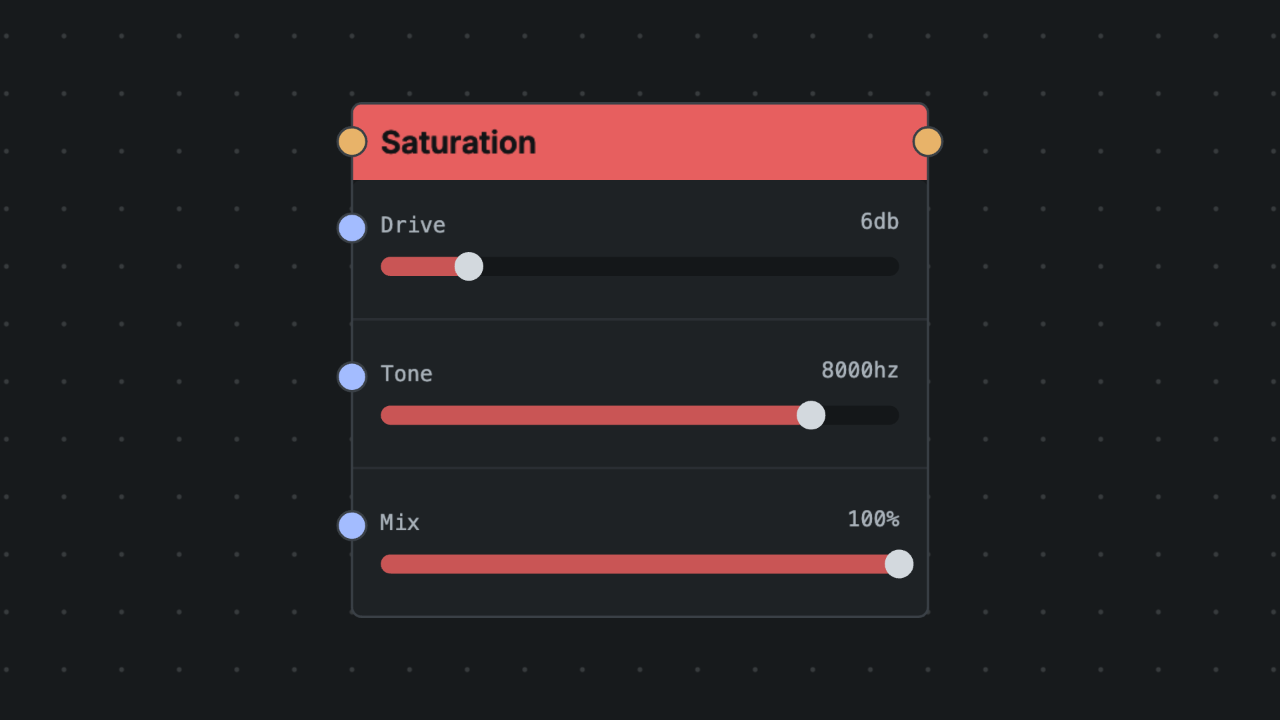

Saturation

Nonlinear saturation effect for soft clipping, harmonic colour, and tape-style drive.

Inputs

Audio In

• ID: audio
• Kind: audio
• Rate: audio
• Audio Channel Layout: stereo
• Unit: normalized
• Range: -1 to 1 normalized
• Coercion: Implicit
• Description: Audio signal input
• Default: 0

Drive CV

• ID: driveMod
• Kind: control
• Rate: control
• Coercion: Implicit

Mix

• ID: mix
• Kind: control
• Rate: control
• Unit: mix01
• Range: 0 to 1 mix01
• Coercion: Implicit
• Description: Live dry/wet mix control
• Default: 1

Outputs

Audio Out

• ID: audio
• Kind: audio
• Rate: audio
• Audio Channel Layout: stereo
• Unit: normalized
• Range: -1 to 1 normalized
• Coercion: Implicit
• Description: Audio signal output

Parameters

Drive

• ID: driveDb
• Type: float
• Control: slider
• Range or Options: 0 to 36 dB, step 0.1
• Default: 6

Tone

• ID: toneHz
• Type: float
• Control: slider
• Range or Options: 100 to 20000 Hz, step 1, log
• Default: 8000
• Description: Post-saturation tone filter

Mix

• ID: mix
• Type: float
• Control: slider
• Range or Options: 0 to 1 mix01, step 0.01
• Default: 1

Notes

• Canonical ID: fx.saturation
• Category: effects
• Runtime Surface: audio
• Runtime Targets: audio-worklet
• JUCE Early Access: Supported
• Early Access Note: Native-supported in the plugin for the current catalog/runtime support contract.
