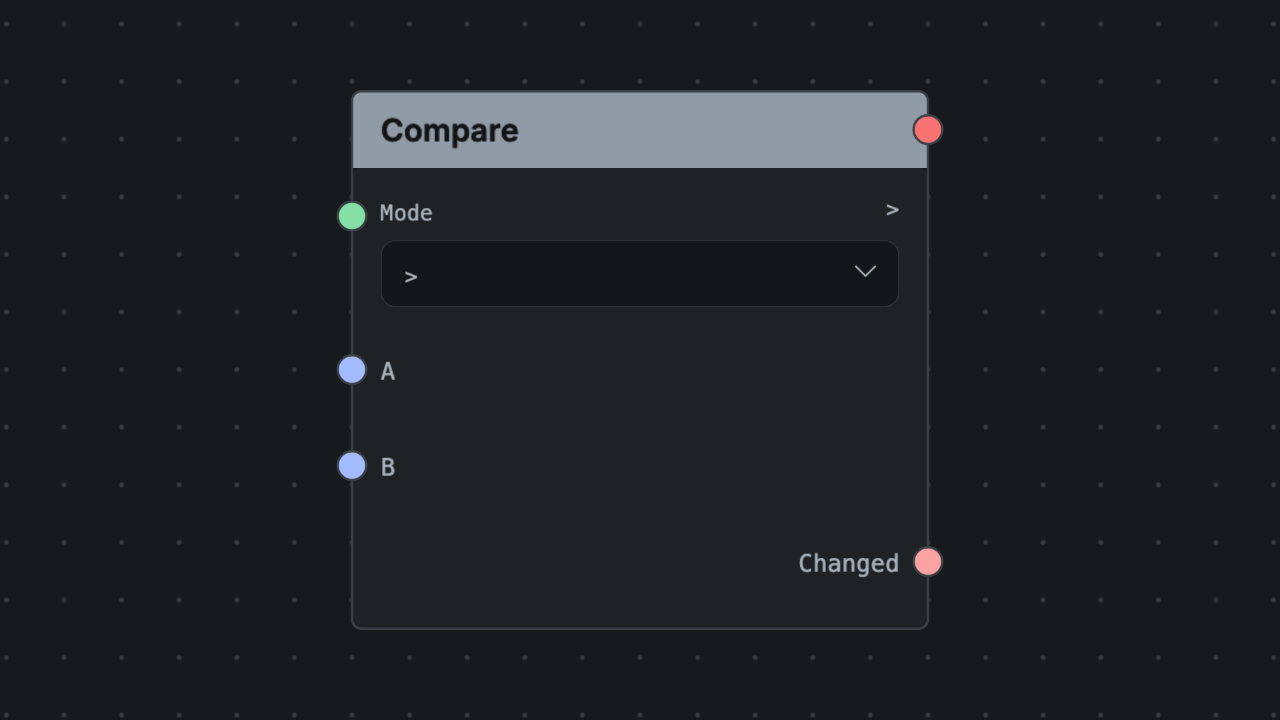

Compare

Mode

Chooses the comparison between A and B that keeps Gate on.

Changes the condition that must be true for the Gate output to stay high.

> Gate stays on while A is greater than B.

>= Gate stays on while A is greater than or equal to B.

< Gate stays on while A is less than B.

<= Gate stays on while A is less than or equal to B.

= Gate stays on while A and B are equal.

≠ Gate stays on while A and B are different.

Inputs

A

Left-hand value A used in the selected comparison.

Signal	Control
Default	0

B

Right-hand value B used in the selected comparison.

Signal	Control
Default	0

Outputs

Gate

Comparison result as a 0/1 gate.

Signal	Gate

Changed

One-sample trigger when the comparison result flips.

Signal	Trigger

Category	Utilities
