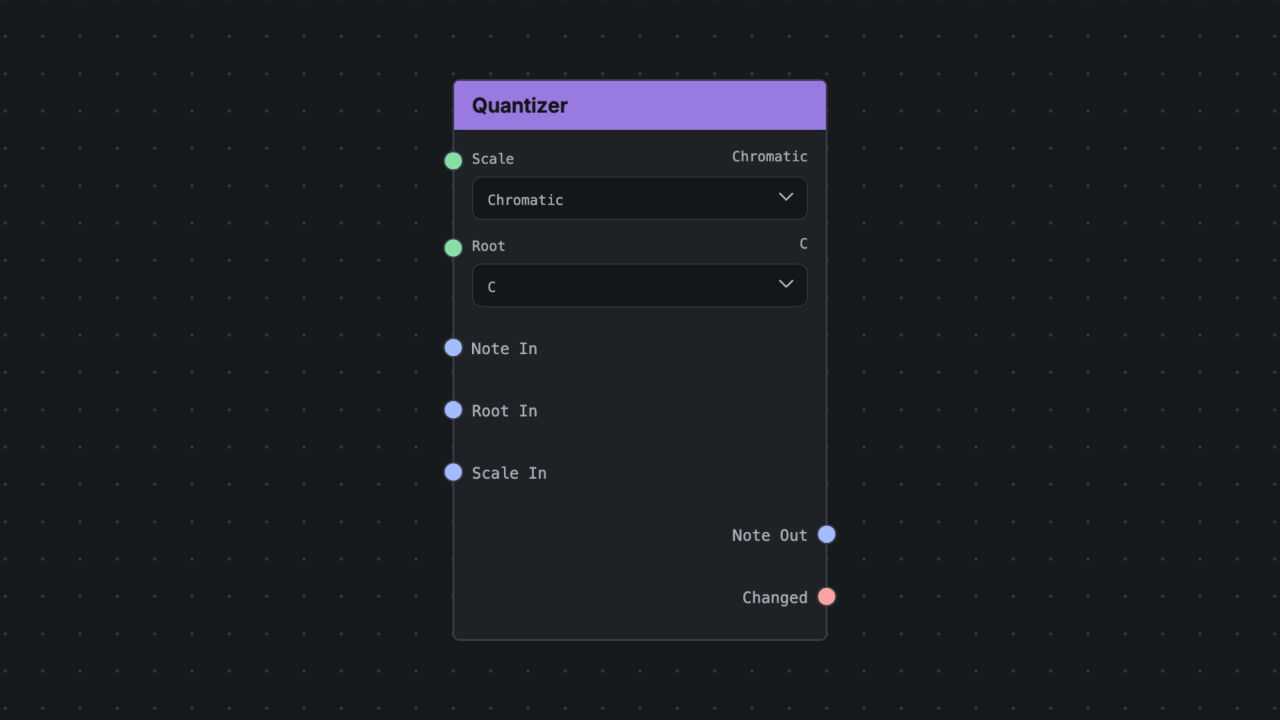

Quantize Pitch

A path-local pitch constraint that snaps an incoming note value to this node’s authored root and scale. Unlike a global setting it applies only along the routing it sits on, so different branches of a patch can enforce different tonalities. Use it to keep a specific voice or line in key without affecting the rest of the graph.

Inputs

Note In

ID	note
Signal	control · control rate
Unit	midiNote
Range	0 to 127 midiNote
Default	60
Coercion	Implicit

Root In

Optional graph-authored root override as a MIDI note.

ID	root
Signal	control · control rate
Unit	midiNote
Range	0 to 127 midiNote
Coercion	Implicit

Scale In

Optional graph-authored scale override: 0 chromatic, 1 major, 2 minor, 3 pentatonic, 4 blues, 5 dorian, 6 mixolydian.

ID	scale
Signal	control · control rate
Unit	count
Range	0 to 7 count
Coercion	Implicit

Scale

Optional connected Scale value that overrides the authored Root and Scale parameters.

ID	scaleContext
Signal	scale · event rate
Coercion	Forbidden

Outputs

Note Out

ID	note
Signal	control · control rate
Unit	midiNote
Range	0 to 127 midiNote
Coercion	Implicit

Changed

Trigger emitted when quantized note changes

ID	changed
Signal	trigger · event rate
Coercion	Implicit

Parameters

Scale

Chooses the scale used to constrain incoming notes.

ID	scale
Type	enum
Control	select
Range or Options	Chromatic (chromatic), Major (major), Minor (minor), Pentatonic (pentatonic), Blues (blues), Dorian (dorian), Mixolydian (mixolydian), Custom (custom)
Default	Chromatic (chromatic)

Root

Sets the root pitch class of the selected scale.

ID	root
Type	enum
Control	select
Range or Options	C (C), C♯ (C#), D (D), D♯ (D#), E (E), F (F), F♯ (F#), G (G), G♯ (G#), A (A), A♯ (A#), B (B)
Default	C (C)

Details

Canonical ID	pitch.quantize
Category	utilities
Runtime Surface	control
Runtime Targets	control-main-thread
JUCE Early Access	Supported
Early Access Note	Native-supported in the plugin for the current catalog/runtime support contract.

Notes

• Scale and root are authored on this node, so two Quantize Pitch nodes can impose different harmonic constraints in one patch.
• A connected Scale value overrides the authored Root and Scale parameters and is lowered into those params for runtime.
• When connected, Root In and Scale In override the stored root and scale parameters for explicit host or graph-driven harmony.
• Does not read patch-wide key context; connect or configure a Quantize Pitch node wherever a pitch path needs harmonic constraints.
